Product Description
Description

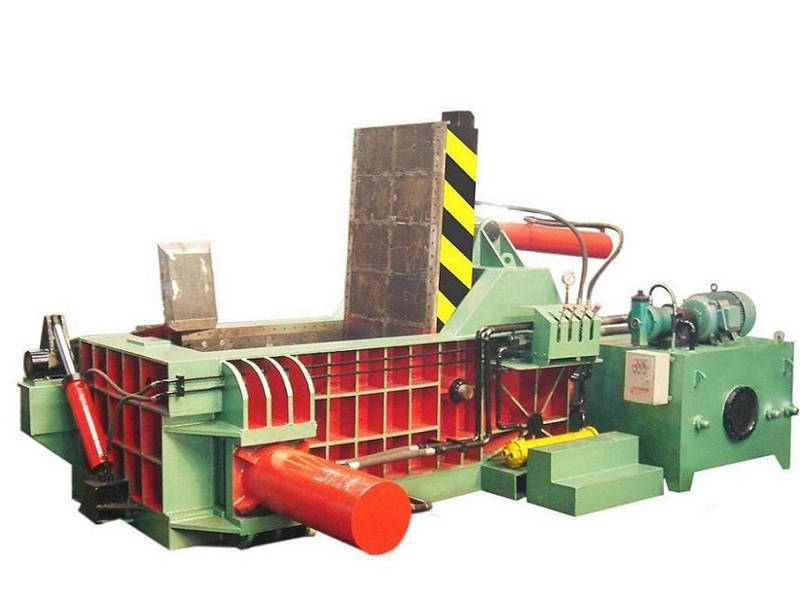

Metal scrap baling press is used to cold compress the waste metal with a thickness below 2-5mm into lumps under the normal state, in order to facilitate transportation or charging into the furnace. The machine is equipped with a quick-action-device that improves the operation efficiency greatly. It is a unique machine in China,type of baler out choose turn-out or forward-out or push-out.
Product characteristics:
l. The side cylinder is quipped with a quick-action device that improves the operation efficiency greatly.
2. The hydraulic system is divided into high and low pressure control, safe and reliable.
3. Manual operation that is safe, reliable and simple.
Parameter
| Model | Nominal force(KN) | Box size (L×W×H)mm | Bale size (W×H)mm | Production (T/hour) | Power (KW) | Type of baler out | Operational |
|---|---|---|---|---|---|---|---|
| YD-630A | 630 | 1000*600*500 | 180*180 | 0.8-1 | 7.5 | Turn-out | Manual peration |
| YD-1000 | 1000 | 1000*600*500 | 200*200 | 0.9-1.1 | 11 | Turn-out | Manual peration |
| YD-1000A | 1000 | 1100*500*500 | 220*500 | 0.9-1.1 | 11 | Forward-out | Manual peration |
| YD-1300B | 1300 | 1200*700*550 | 250*250 | 1-1.2 | 15 | Turn-out | Manual peration |
| YD-1300C | 1300 | 1200*800*550 | 300*300 | 1.2-1.5 | 18.5 | Turn-out | Manual peration |
| YD-1350 | 1350 | 1400*600*600 | 250*600 | 1.5-1.8 | 22 | Forward-out | Manual peration |
| YD-1600 | 1600 | 1200*800*550 | 300*300 | 1.2-1.5 | 22 | Turn-out | Manual peration |
| YD-1600A | 1600 | 1600*800*800 | 350*350 | 1.5-2 | 22 | Turn-out | Manual peration |
| YD-1600B | 1600 | 1600*1200*800 | 400*400 | 1.8-2.2 | 22 | Turn-out | Manual peration |
| YD-2000A | 2000 | 1600*1200*800 | 350*400 | 2-2.5 | 22 | Turn-out | Manual peration |
| YD-2000B | 2000 | 1800*1400*800 | 450*450 | 2.5-3 | 22 | Turn-out | Manual peration |
| YD-2500A | 2500 | 2000*1200*1000 | 450*450 | 3-3.5 | 30 | Turn-out | Manual peration |
| YD-2500B | 2500 | 2000*1400*900 | 500*500 | 3-3.5 | 30 | Turn-out | Manual peration |
| YD-2500C | 2500 | 2000*1750*1200 | 500*500 | 4-6 | 22*2 | Push-out | Manual peration |
