Product Description
Description
SBJ Metal chip briquetting press is used for cold pressing of other metal scraps including powdery grainy cast iron scrap and steel scrap etc. to column form cake block with the density 25.5T/m3(without any bond). Afier out of the furnace, the cake block can be used as pig iron. This machine is designed with quick speed cylinder and liquid rinsing valve. The B type machine has auto charging unit which canbe operated by single man, C model is PLC automaticcontrol, With the novel particular sturcture, this machine is originalin China.
Parameter
| Model | Inner diameter of main cylinder | Size of briquette | Density | CaP(P/min) | Production | Power | Remark |
|---|---|---|---|---|---|---|---|

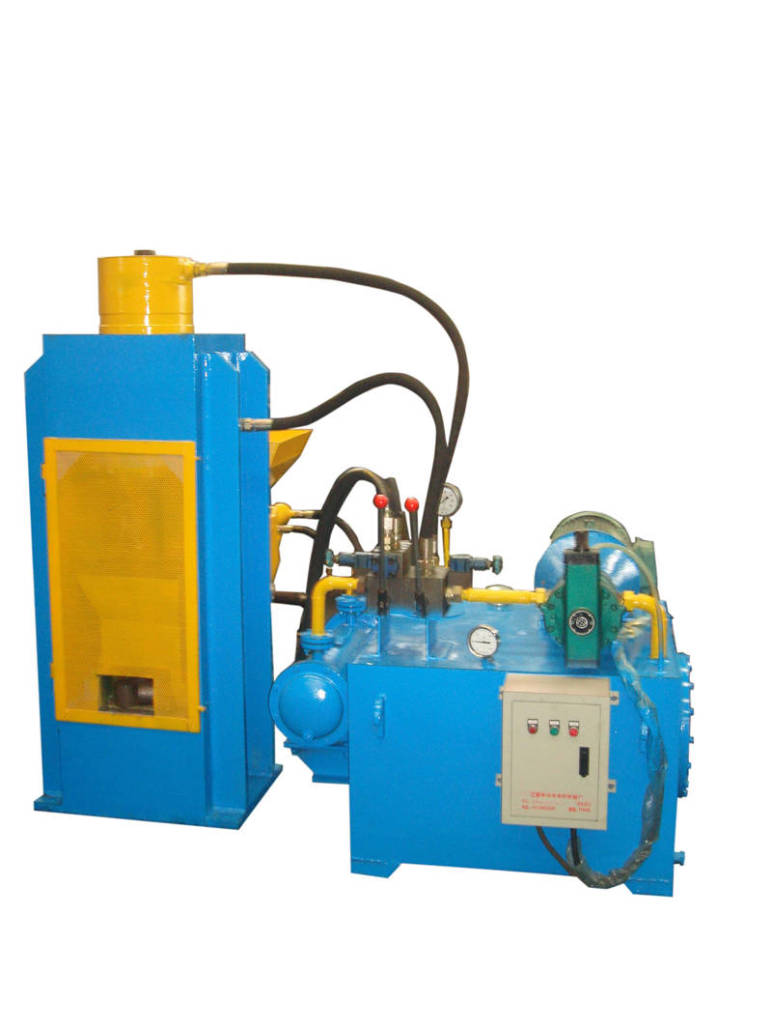

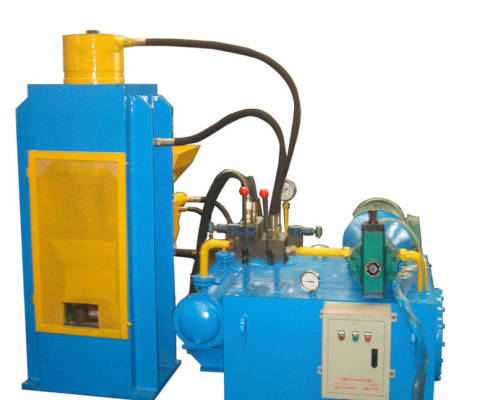

| SBJ-1500A | φ250 | φ80×(60-80) | ≥5 | 3 | 0.25-0.3 | 15 | Manual |
| SBJ-1500C | φ250 | φ80×(60-80) | ≥5 | 3 | 0.25-0.3 | 15 | PLC automatic |
| SBJ-2000A | φ280 | φ80×(60-80) | ≥5 | 4 | 0.4-0.6 | 15 | Manual |

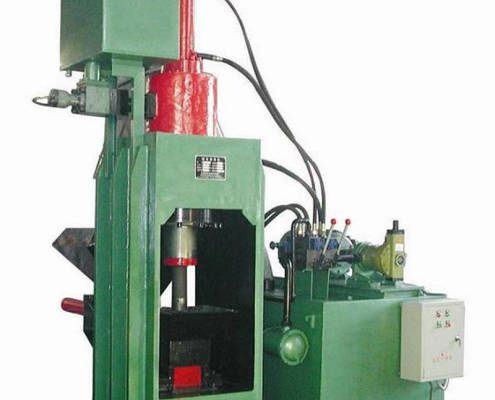

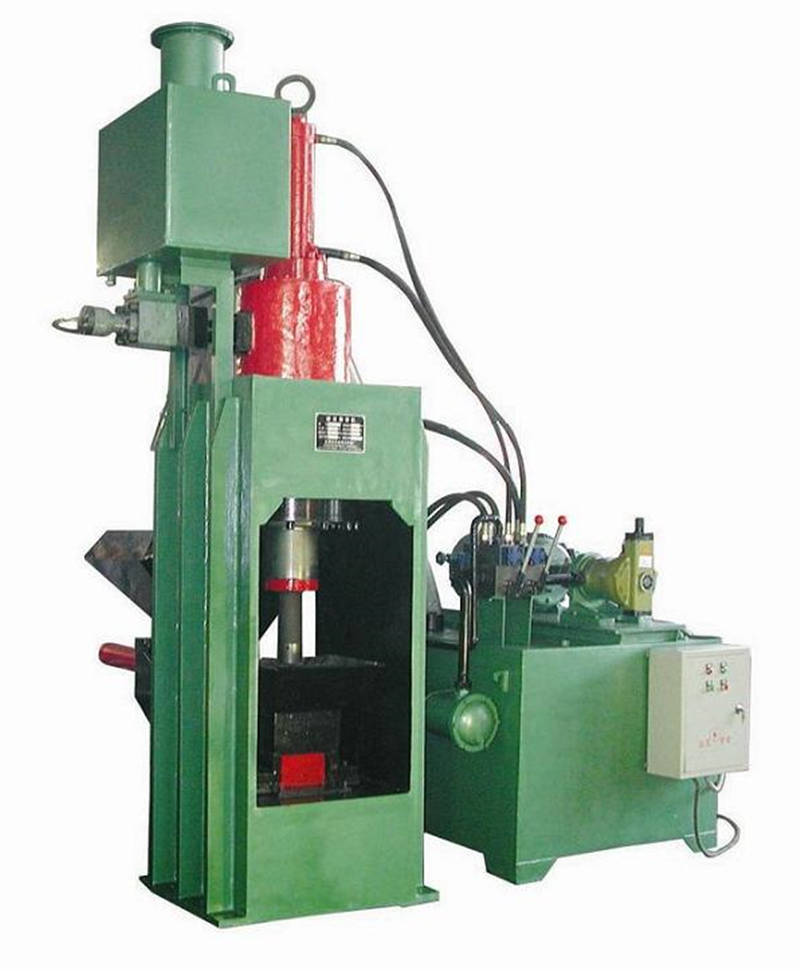

| SBJ-2000B | φ280 | φ80×(60-80) | ≥5 | 5 | 0.5-0.75 | 15 | Manual |
| SBJ-2000C | φ280 | φ80×(60-80) | ≥5 | 6 | 0.5-0.8 | 15 | PLC automatic |
| SBJ-2500B | φ320 | φ80-90×(60-80) | ≥5.2 | 5 | 0.6-0.8 | 18.5 | Manual |

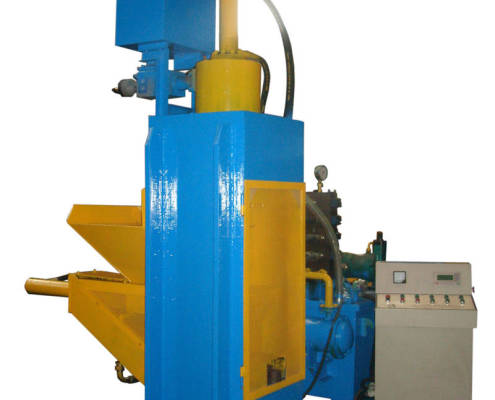

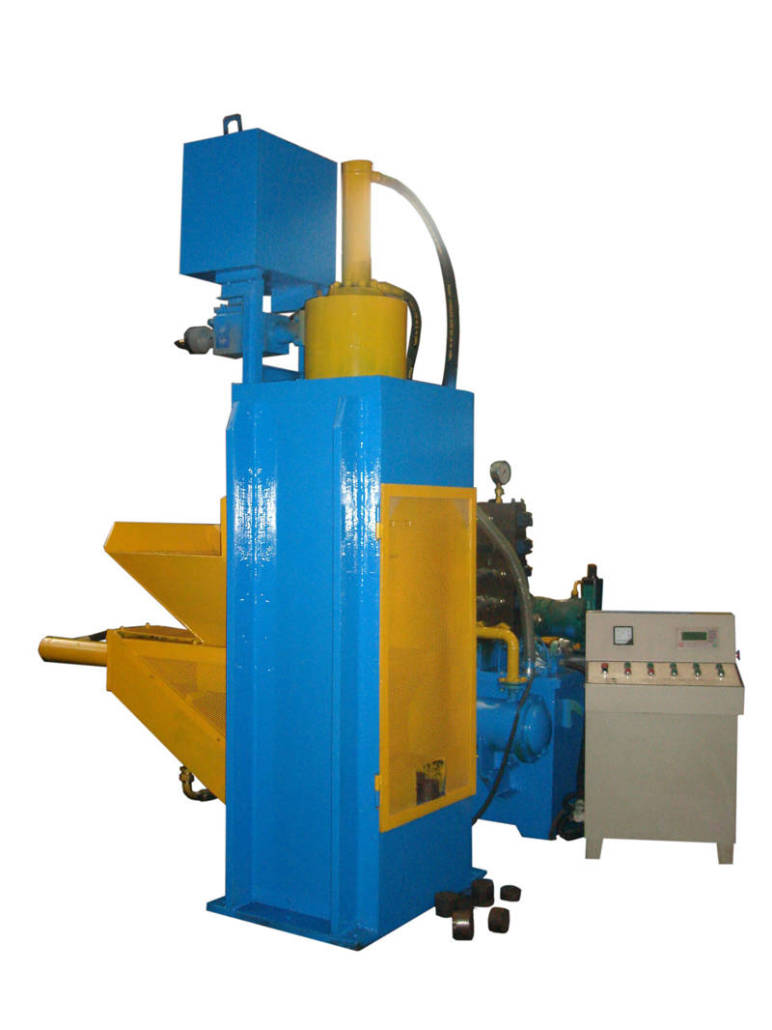

| SBJ-2500C | φ320 | φ80-90×(70-90) | ≥5.2 | 5 | 0.6-0.8 | 18.5 | PLC automatic |
| SBJ-2500E | φ320 | φ80-90×(70-90) | ≥5.2 | 5 | 0.5-0.8 | 18.5 | PLC automatic |

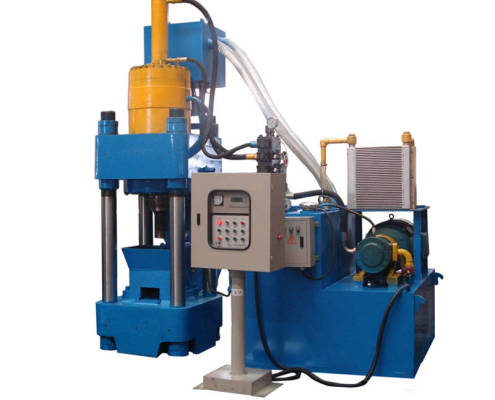

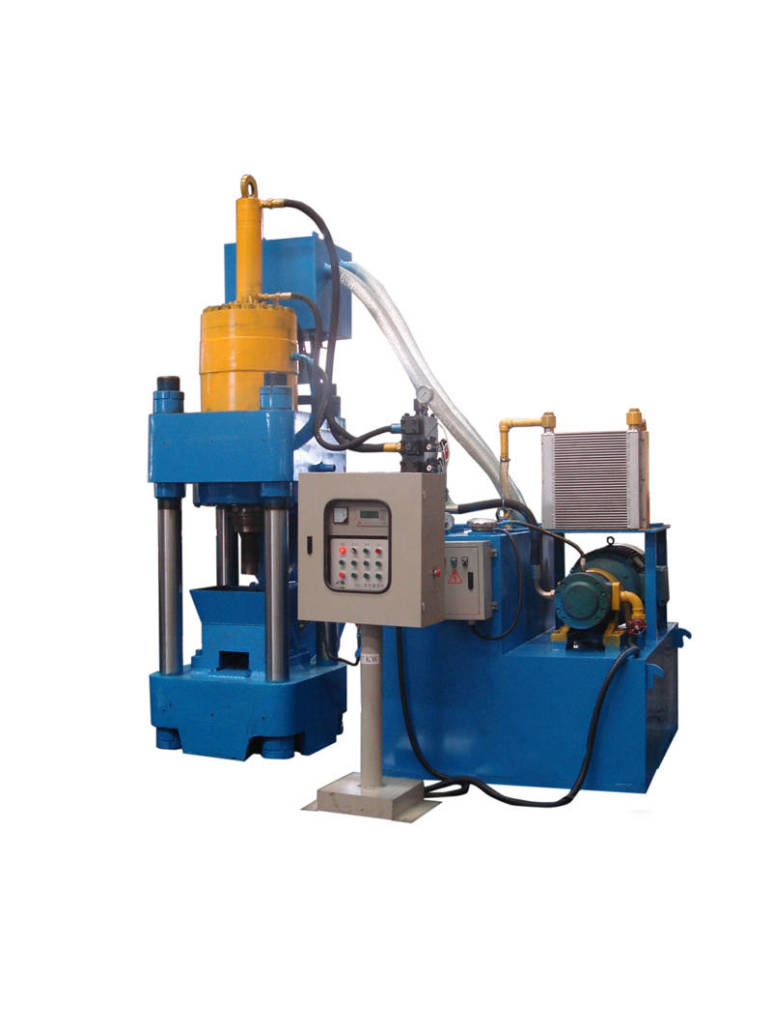

| SBJ-3150B | φ360 | φ90-110×(80-100) | ≥5.5 | 6 | 1-1.2 | 30 | PLC automatic |

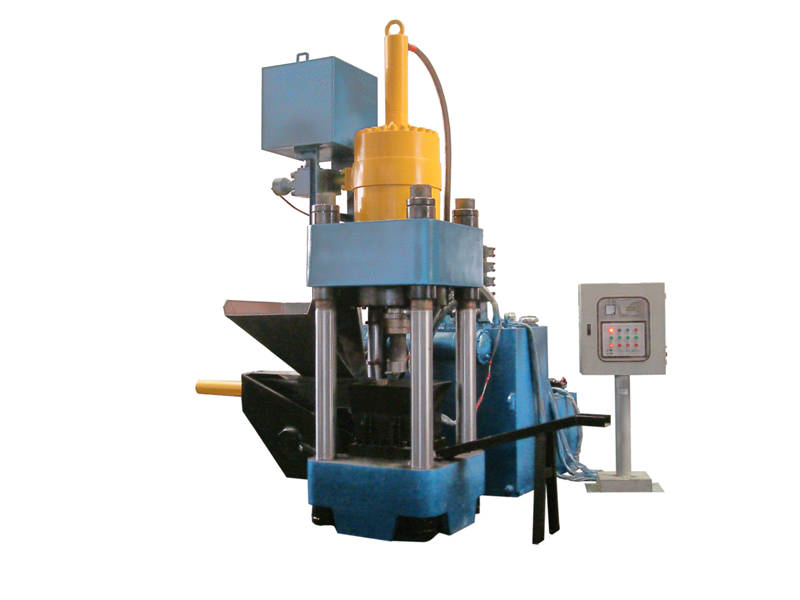

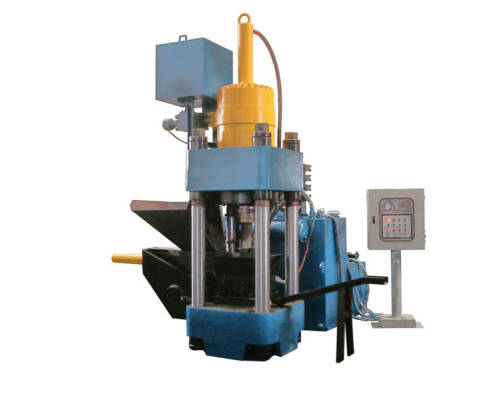

| SBJ-3600 | φ400 | φ100-120×(80-100) | 5.5-6 | 5 | 1.2-1.5 | 30 | PLC automatic |

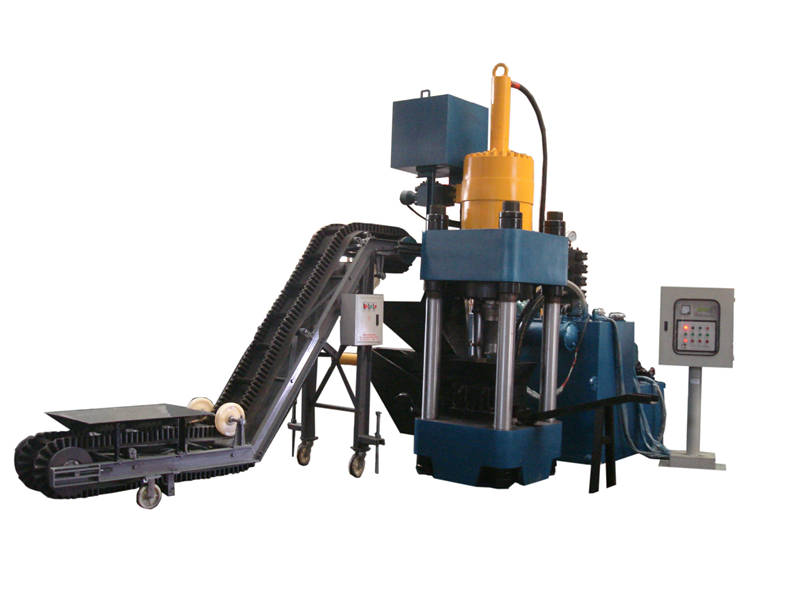

| SBJ-5000 | φ450 | φ120-140×(80-100) | 5.5-6 | 4.5 | 1.5-2 | 37 | PLC automatic |

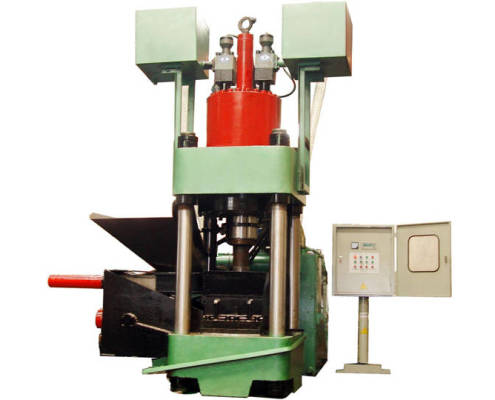

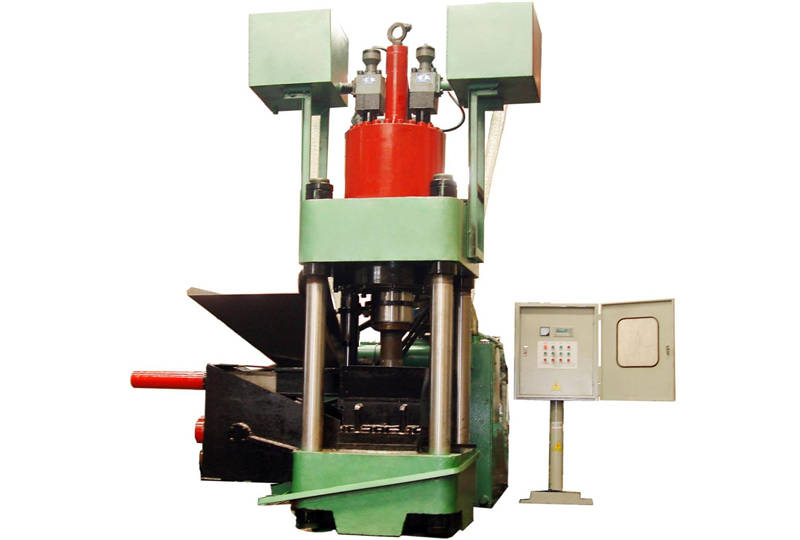

| SBJ-6300 | φ520 | φ150-200×(100-200) | 5.5-6 | 4 | 2-2.5 | 45 | PLC automatic |
