Product Description

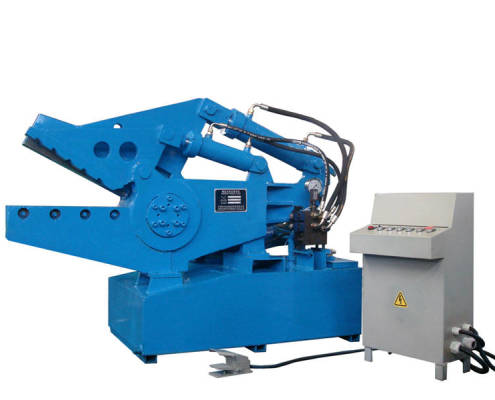

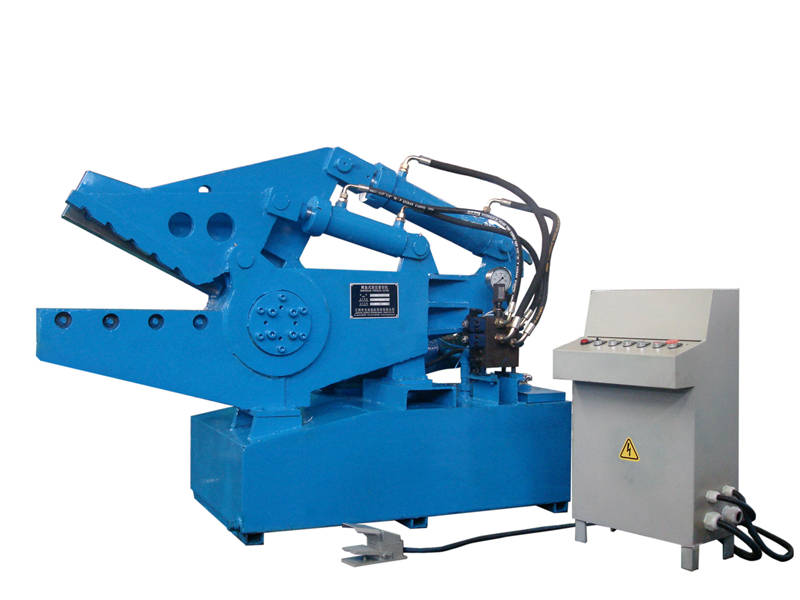

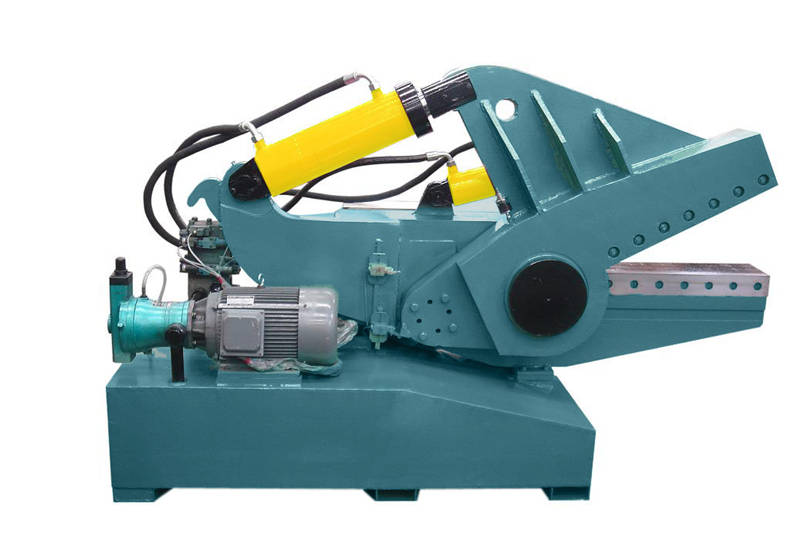

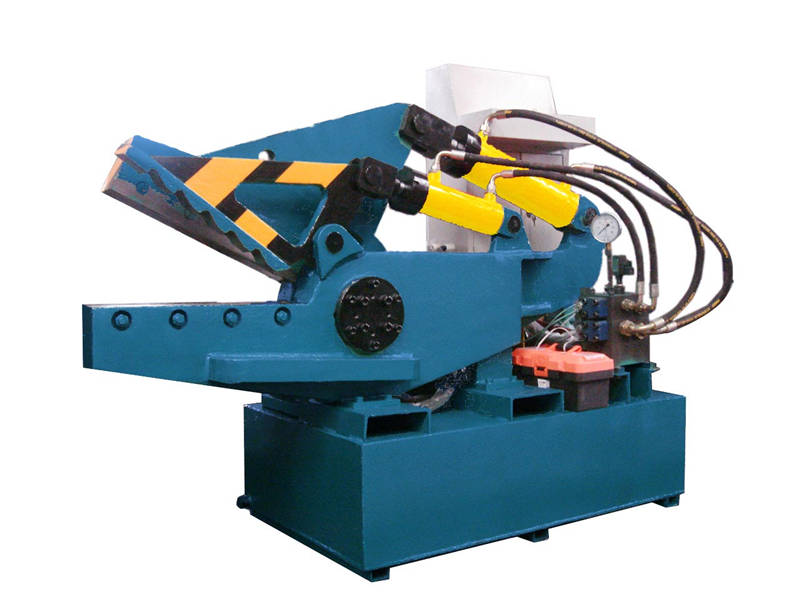

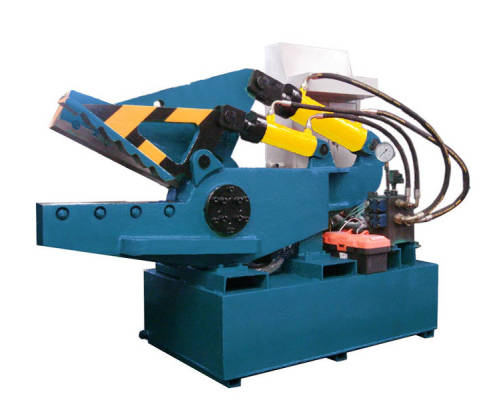

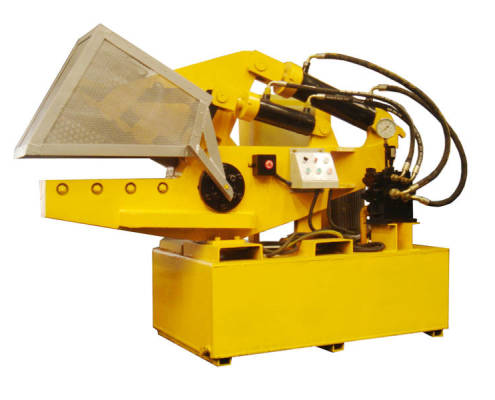

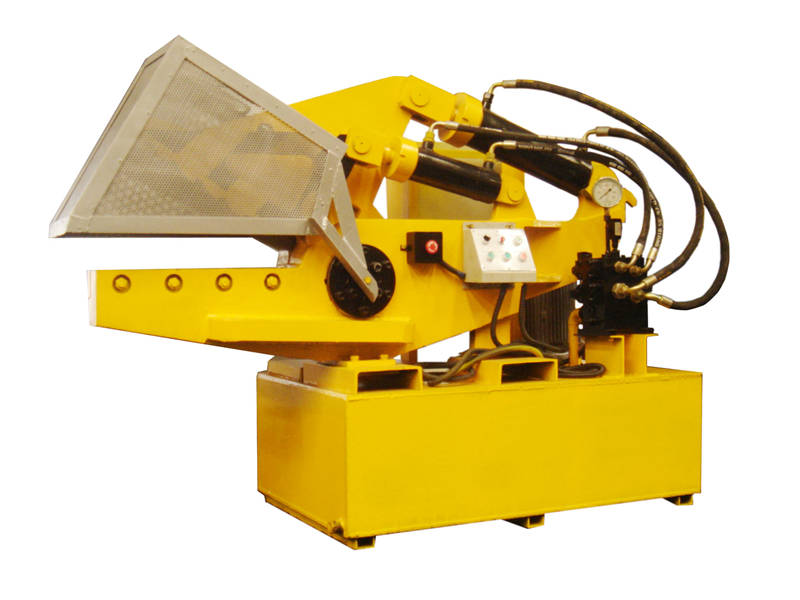

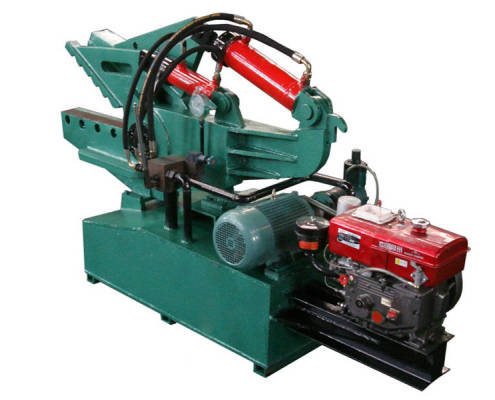

Q08 series new hydraulic metal shearing machine is a new developed model which used advanced technology on world wide level. This is a latest hydraulic shearing machine which is suitable for cold cutting On stead of flame cutting) different type waste metals to short pieces which qualified to the furnace ,it could be enhance the working efficiency as well as save the labor and gas cutting cost .
Product Description
1. It applies a hydraulic drive and pre-pressing unit and it is safeand reliable.
2. Two operation modes, that is, manual and automaticmodes, are available.
3. Operating knife edge lengths come in twospecifications, that is, 600mm, 700mm
PARAMETER
| MODEL | MAX.SHEARING FORCE | MAX.BALDE OPENING | BALDE LENGHT | SHEARING SPEED(TIMES/MIN) | POWER | MATERIAI SIZE | OPERATIONAL |

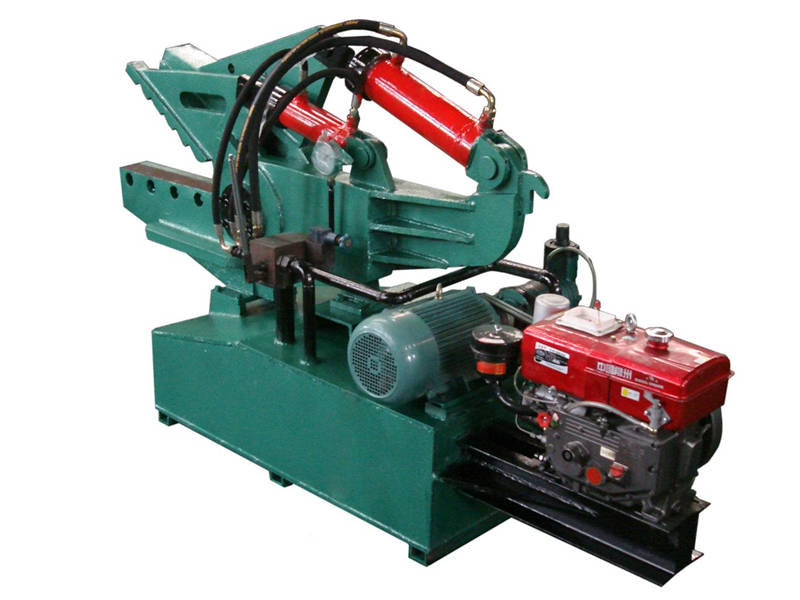

| Q08-63 | 630 | 320 | 600 | 14-20 | 7.5 | 20*200/φ35 | Manual or auto |
| Q08-100 | 1000 | 320 | 600 | 12-20 | 7.5 | 30*200/φ40 | Manual or auto |
| Q08-120 | 1200 | 320 | 600 | 12-20 | 11 | 30*250/φ45 | Manual or auto |
| Q08-160A | 1600 | 360 | 600 | 11-20 | 15 | 30*320/φ60 | Manual or auto |

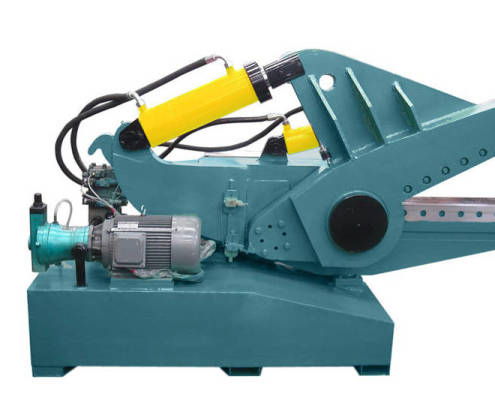

| Q08-160B | 1600 | 380 | 700 | 11-20 | 15 | 30*320/φ60 | Manual or auto |
| Q08-200 | 2000 | 420 | 800 | 11-20 | 18.5 | 30*400/φ60 | Manual or auto |
